The Industry Leader in ELASTOMERIC Waterproofing Insulating Ceramic Paints and Coatings

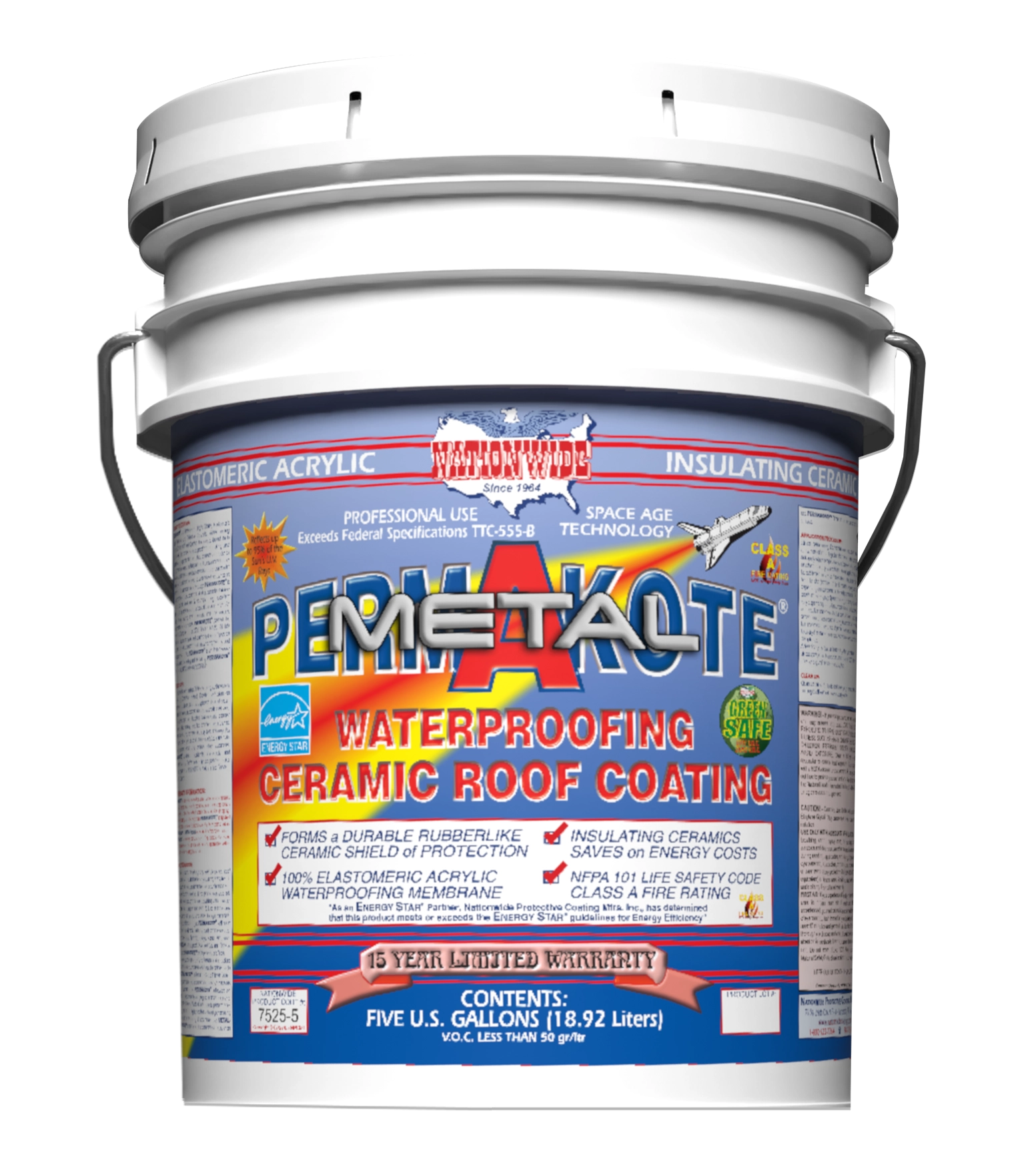

PERMAKOTE® Metal Roof Paint

HOW TO WATERPROOF A METAL ROOF

PERMAKOTE® Metal Roof Paint is a Matte Finish Rubberized Coating for Metal Roofs. A Bright White, Acrylic, Insulative and Reflective Ceramic, Waterproofing Protective Elastomeric Roof Coating. Designed for metal roofs to provide unmatched flexibility and resistance against harsh weather conditions. From tin roof sealant to corrugated and rusty metal roof sealants, our PERMAKOTE® Metal Roof Paint Line of products are specially formulated for a wide variety of metal roof types. Check out our selection of elastomeric coatings for metal roofs below, in addition to application instructions for the best results.

COLORS: We can match any competitor’s colors or custom colors.

PERMAKOTE® Uses:

Metal Roofs including: Tin, Aluminum, Primed Rusty Metal, R-Panel, Standing Seam, Corrugated Metal, Butler Buildings, Hangars and Factories and most other metal composition surfaces.

Applying Nationwide Metal Roof Paint
Applying Nationwide Metal Roof Patch
After Applying Nationwide Metal Roof Paint

Surface Preparation (Residential & Commercial):

Apply only to a sound, completely dry, well prepared roof surface. Leaks must be repaired before any coating is applied. If primer was applied, it is essential that the primer surface is clean and dry and free of all moisture. If no primer was applied, prepare surface by thoroughly pressure washing with a water and chlorine mixture using at least 1500 P.S.I. to remove any previous coatings, dirt, grease, and other foreign materials, especially mold, mildew and algae. PERMAKOTE® will resist mildew growth, but will not kill mildew already on the surface. Patch any holes, cracks, flashings, valleys, vents, etc., with PERMAPATCH™, a Waterproof Caulk and Sealant. Tape & seal all seams with PERMATAPE™, a Polyester Fabric Tape or PERMASTIK™ Self-Adhesive Seam Tape. Clean surface of all grease, oil and foreign matter before priming. Rusted metal and uncoated metal must be primed with METAL-PRIME RED-OX™, a Red Iron Oxide Primer Sealer. Use a degreaser on galvanized or coated metals which have oils or surface treatments. Check PERMAKOTE® adhesion on galvanized or coated metal by applying to a small area and evaluating after 48 hours. If lack of adhesion is present after evaluating, metal must be lightly scuffed without penetrating the coated finish or galvanizing. If applicable, use METAL-PRIME RED-OX™ to spot prime the penetrated areas, then use PERMABOND™ Primer for entire coated or galvanized surface. PERMAKOTE® Metal Roof Paint is ideal for residential, commercial and industrial applications. For flat roofs or limited ponding water situations inquire about PERMAKOTE PLUS®, Limited Ponding Water Roof Coating.

Need help? Call toll free 1-800-423-7264 to speak with a waterproofing expert.

Tools:

Nationwide premium elastomeric roof coatings can be applied with a brush, roller or airless sprayer. Use at least a 1 gallon per minute piston type airless spayer with a maximum tip size of .027. Remove all line and gun filters before spraying.

Protect your roof with PERMAKOTE® Metal in 6 easy steps

Application Procedure:

STEP#1: VISUAL INSPECTION and REPLACEMENT of DAMAGED BUILDING MATERIALS

The roof surface to be coated must be in SOUND condition. Physically inspect the surface area for missing or damaged building materials. Replace and/or repair all damaged areas.

STEP#2: PRESSURE CLEANING

High pressure clean entire roof surface with at least 1500 P.S.I. of pressure using a water and chlorine solution.

STEP#3: TREAT RUST or PATCHING IMPERFECTIONS

Apply coats of METAL-PRIME™ RED-OX as needed and patch remaining imperfections with PERMAPATCH™.

STEP#4: TAPING SEAMS

Tape all visible seams, valleys, large cracks & fractures prone to water intrusion on roof surface with PERMASTIK™.

STEP#5: FULL PRIMER COAT

Apply a uniform coat of PERMABOND™ across entire preped roof surface.

STEP#6: METAL ROOF PAINT APPLICATION

Apply 2 full coats of PERMAKOTE® Metal Roof Paint 12 hours apart, sit back and admire your freshly Painted Roof.

Download Detailed Instructions
After Applying Nationwide Metal Roof Paint In Dubai
How to Apply Metal Roof Paint
How to Apply Metal Roof Paint to a Metal Roof

Estimated Coverage:

Standard product coverage on a smooth surface for PERMAKOTE® Metal Roof Paint is 100 sq. - 150 sq. ft. per gallon per coat. Rough or uneven surfaces may require additional product. Two coats of PERMAKOTE® Metal Roof Paint is recommended for a longer life.

Weather & Drying Guidelines:

Make sure PERMABOND® is completely dry before proceeding with additional coats. PERMAKOTE® Metal Roof Paint dries in approximately 2–4 hours, but it is recommended to allow 12 hours between coats to allow for variations in weather and thickness. PERMAKOTE® Metal Roof Paint continues to cure for up to two weeks after application. Dry times are dependent upon the thickness of application, humidity and weather. Some conditions, such as low temperature, high humidity, evening and morning dew, can increase curing times.

Clean Up, Storage & Disposal:

Clean up all spills, tools and overspray immediately while the coating is still wet with warm soapy water. Store unused product in its original container, tightly sealed and protect from freezing. Dispose of this product in accordance with local, state, or federal requirements.

Spread Rate: 100-150 Square Feet Per Gallon

15 YEAR WARRANTY

  • TECHNICAL DATA
  • Solids By Weight: 63%
  • Weight Per Gallon: 11.9 lbs.
  • V.O.C.: 77 g/l

Recommended Products

METAL-PRIME™

5790

100% Acrylic Elastomeric Red Iron Oxide High Solids, Zinc Rich, Waterproofing Rust Treatment Metal Primer & Sealer.

rusted metal primer sealer

PERMABOND™

7595

100% Acrylic Elastomeric Waterproofing Adhesive Bonding Primer Sealer. Forms a Tacky Finish to Provide a Tight Bond to Elastomeric Roof Coatings.

bonding primer

PERMASTIK™

9500

Fleece Backed Self Adhesive Repair and Flashing Tape Designed for a Variety of Roofing and Waterproofing Repairs.

permastik

PERMAPATCH-NYLON™

7540N

ELASTOMERIC WATERPROOFING HIGH SOLIDS NYLON REINFORCED ROOF, WALL & FLOOR WHITE CAULK & SEALANT. MINIMAL SHRINKAGE.

roof patch
